WFI Aerosol Generator

AFM NEO

Cleanrooms are dynamic systems. People and goods are constantly in motion.

Installations, production lines and machines do require periodical adjustment to the production of different products. Acc. To the relevant standard iso 14644-3 the operators of cleanrooms are obliged to give periodically evidence of the in situe air flow situation by an air flow mapping supported by high purity air flow mappers (clean room foggers).

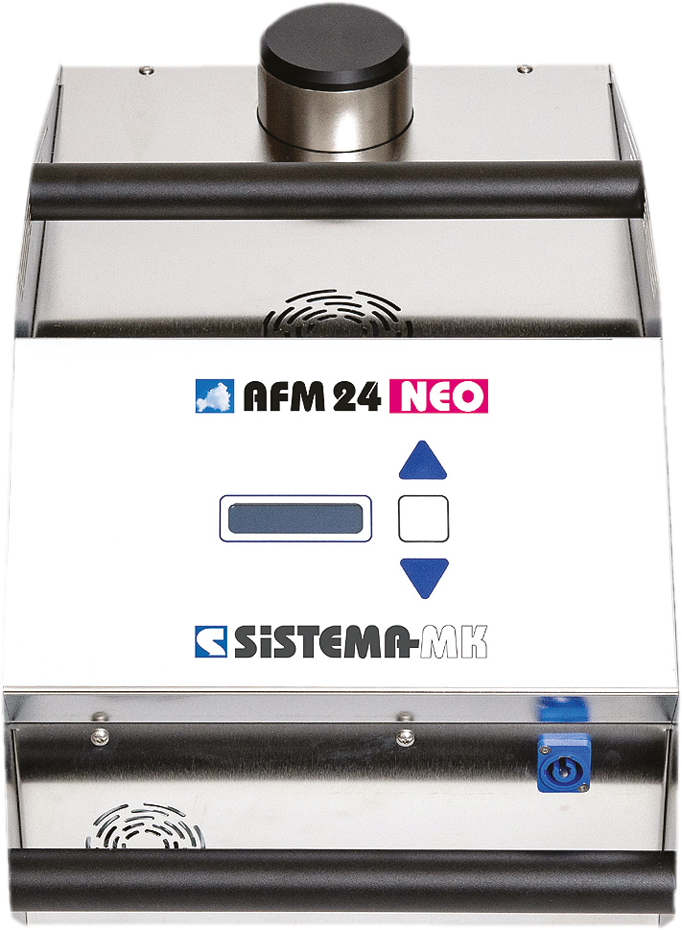

The Afm Neo cleanroom fogger uses a high performance ultrasonic module of 35 piezoelectric ceramics to generate in its class unmatched 1,25 cubic meters of pure fog per minute with 170 ml of fog density per minute to provide 5 to 7 m of visible air flows for smoke studies in clean rooms, medical rooms, iso suites, barrier isolators, fume hoods and similar applications in clean rooms.

The Afm Neo is the best ultrasonic based air flow mapper / clean room fogger and only needs di water or wfi water to produce this higher volume of white dense pure fog .

WFI Aerosol Generator

AFMNEO

Technical specifications

Performance data
– Afm24-neo gen.2019 atomizing from minimum 2,60 liter (with a 25 % fan Output) to maximum 6,40 liter (with a 100 % fan output) of wfi-water in 45 min. Maximum cycle time at 60 min.

– Afm30-neo gen.2019 atomizing from minimum 2,98 liter (with a 25 % fan Output) to maximum 8,10 liter (with a 100 % fan output) of wfi-water in 45 min. Maximum cycle time at 75 min.

– Afm35-neo gen.2019 atomizing from minimum 3,46 liter (with a 25 % fan Output) to maximum 10,20 liter (with a 100 % fan output) of wfi-water In 45 min. Maximum cycle time at 90 min.
Fog volume
Min. 1.25 cubic meters fog / minute
Visible fog distances typical
3,5 to 7 m
Fog type
Pure fog using di (deionized) water or wfi (water for injection) water class of clean room class a to d . . . Class 1 to 10.000
Type of room
Clean rooms, sterile rooms, iso suites, medical rooms
Water capacity
9,5 to max. 10 liters
Useable water capacity
7.650 liters
Liquid weight
10 kg (22 pounds)
Power requirements
230 vac, 50/60 hz, 8a and 115 vac, 60 hz, 14a
Aerosol Concentration
100 μg/l @7,000 cfm
10μg/l @ 70,000 cfm
Metric dimensions (h x w x d)
293.6 mm x 325 mm x 571.4 mm
Inch dimensions (h x w x d)
11.56 inches x 12.8 inches x 22.49 inches
Empty product weight
11.0 kg (24.2 lbs)
