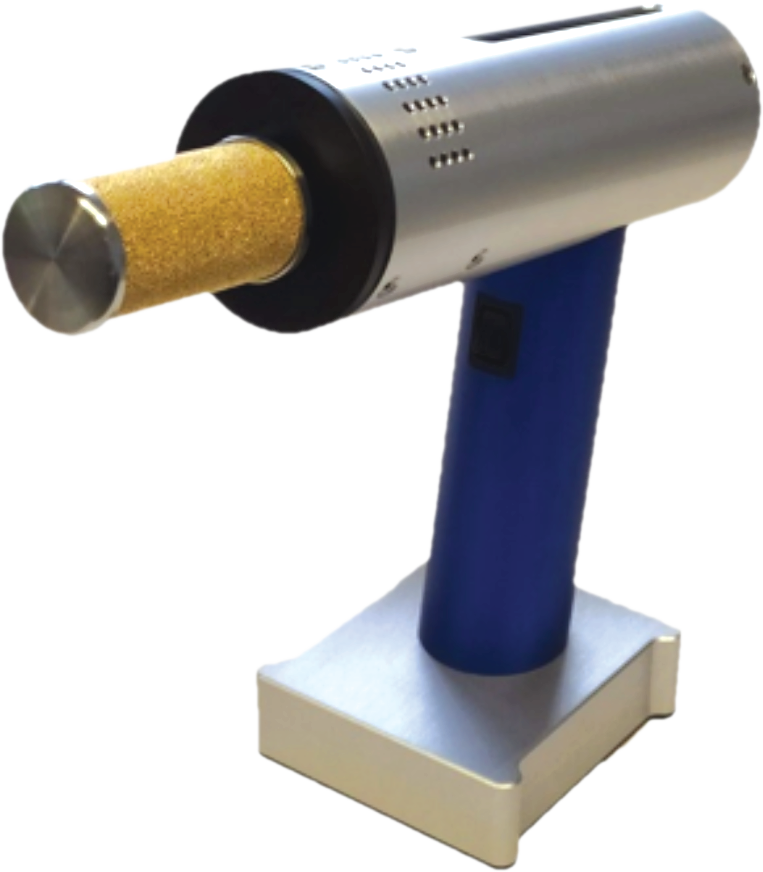

Pistol Fogger

RIGEL RI8031

The best choice for air flow testing

Contact us to learn more about the RIGEL8031 Pistol Fogger

Pistol Fogger

RIGEL RI8031

According to the relevant standard ISO 14644-3 ANNEX B7 the operators of cleanrooms are obliged to give periodically evidence of the actual air flow situation by a state of the art air flow mapper.

That’s why you had to choose a proper instrument for mapping your air flow.
The RI8031 is portable instrument and has a big autonomy based on battery package and 60 mL syringe, that gives you the opportunity to work up to 60 minutes continuously at its fullest.

The smoke density makes this instrument the best on the market and its wide range of accessories makes the RI8031 the most versatile instrument on his sector

Pistol Fogger

RIGEL RI8031

Technical specifications

Type of device
Handheld fog generator (pistol)
Field of use
Visualize and test air streams in clean rooms and controlled contamination spaces (ISO 14644-3 – Section B.7 “Airflow direction test and visualization “)
Fluid type (*)
Mixture of deionized water and glycol, sterilized with Gamma rays
Fog characteristics
High density, persistent, white colour fog
Tank capacity
Max. 60 mL (Syringe)
Operating state and diagnostic test
Visible by means of blinking led with different operating modes
Heater power
30 W
Evaporator temperature
Controlled and adjusted by microprocessor
Activation command
Push button on the handle of the pistol
Mixture consumption
About 0.6 mL/min
Continuous fog generation time
About 60 min (starting with a fully charged battery)
Electrical supply
Lithium-ion battery type RRC SMBUS 15 V 3200 mAh Rechargeable
Battery charger
Type RRC-SMB-MBC 115-230 V 50-60 Hz 65 W
Operating environmental requirements
Temperature from 0 °C to + 40 °C Relative humidity 10 ÷ 90%
Storage environmental requirements
Instrument:
Temperature from – 20 °C to + 60 °C
Relative humidity 10 ÷ 90% not condensing


Battery:
Temperature from – 20 °C to + 20 °C
Relative humidity 10 ÷ 70% not condensing
Instrument casing
Anodized aluminum
Dimensions (L x H x W)
275 x 227 x 93 mm (including filter cartridge)
Weight
About 1500 g (with battery and filter cartridge, no fluid)

Learn more about the RIGEL8031 Pistol Fogger
