Airborne Particle Counter with Built-In Pump

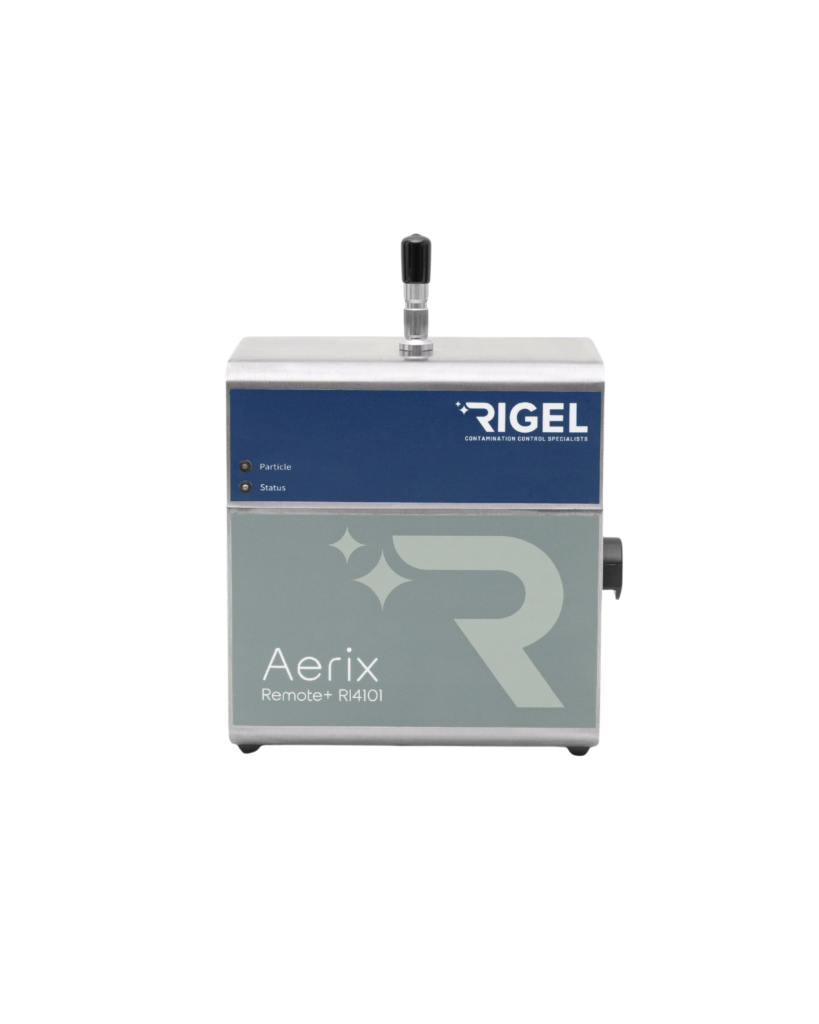

RIGEL Aerix Remote+
Next-Generation Remote Airborne Particle Counter with Integrated Pump
- Up to 4-channel particle measurement (0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 µm)
- 1.0 CFM (28.3 L/min) flow rate with built-in sampling pump
- Modbus RS-485 or Ethernet (TCP/IP) connectivity
- Flexible 4–20 mA analog output per channel
- Fully compliant with ISO 21501-4 and JIS B 9921
- Cleanroom-compatible stainless-steel enclosure
- List Item
Contact us to learn more about the RIGELAerix Remote+
Airborne Particle Counter
RIGEL Aerix Remote+
The Aerix Remote 4101+ is engineered to provide reliable, standards-compliant airborne particle measurement in controlled environments where an external vacuumsource is not available.
It combines a sealed laser diode optical engine, a built-in sampling pump with stable 1.0 CFM flow, and robust industrial communication interfaces to ensure consistent, uninterrupted performance during continuous operation.
With a cleanroom-compatible stainless-steel housing and up to 4 configurable particle size channels (0.5 and 5.0 micron for cleanroom monitoring application), the Aerix Remote+ 4101 delivers continuous, audit-ready data across a broad range of facility monitoring scenarios.
The instrument integrates seamlessly with IEMS Next®, SCADA systems, and modern Environmental Monitoring platforms via Modbus RTU (RS-485), Modbus TCP/IP, or 4–20 mA analog output, enabling end-to-end data integrity and real-time oversight across aseptic and controlled manufacturing areas.
To support a wide range of installation scenarios, the Aerix Remote+ 4101 is available in two communication variants.
- The Modbus RTU (RS-485) version is ideal for legacy infrastructures that require stable backward compatibility with existing EMS or SCADA systems, ensuring straightforward integration without changes to the facility network.
- The Modbus TCP/IP with PoE++ version introduces a modern, future-ready architecture that reduces cabling requirements, simplifies power delivery via a single Ethernet cable, and accelerates commissioning in new cleanroom deployments.
Together, these options give facility managers and pharmaceutical manufacturers the flexibility to align their monitoring strategy with both current operational constraints and long-term digitalization roadmaps.
Airborne Particle Counter
RIGEL Aerix Remote+
Technical specifications
- Pharmaceutical Cleanrooms: Continuous, compliant airborne particle monitoring in ISO-classified environments without dependency on external vacuum infrastructure.
- Aseptic Manufacturing & Fill-Finish Lines: Ensures uninterrupted particle data where process integrity and audit readiness are mandatory.
- Isolators, RABS and Biosafety Cabinets: Compact footprint and self-contained pump enable installation in enclosed environments with no external services.
- Distributed Environmental Monitoring Networks: Multi-point deployment across large facilities via Modbus or Ethernet, with centralized data collection through IEMS Next®.
- Hospital Operating Rooms and Sterile Compounding Units: Reliable continuous monitoring in healthcare-grade controlled areas.
- Building Automation and Facility Management Systems: Analog output and Modbus integration allow connection to PLCs and BAS controllers.
Product Part Number | RIOPT4101001 | |
Size Channels | Factory calibrated at 0.5, 5.0µm | |
Counting Efficiency | 50% @ 0.5µm; 100% for particles > 0.75 µm per ISO 21501-4 | |
Flow Rate | 1.0 CFM (28.3 LPM) | |
Concentration Limits | 1,000,000 CNT/ft³ | |
Light Source | Laser Diode | |
Sampling Pump | Built-in | |
Zero Count | 1 count / 5 minutes. No fault count subtraction. | |
Calibration | ISO 21501-4 & Optional ISO 17025 | |
Airflow | Internally monitored | |
Communication Modes | Modbus RTU (RS-485) / Modbus TCP/IP (Ethernet RJ45) | |
Instrument Calibration | Recommended minimum once per year as per ISO 21501-4 | |
External Surface | Stainless steel (304) | |
Dimensions (L x W x H) | 181 × 110 × 190 mm (7.13″ × 4.33″ × 7.48″) | |
Weight | 3.4 kg (7.50 lb) | |
Accessories | User manual · AC adapter · Zero Filter | |
Buffer Memory | 5,000 sample records (read and erase via Modbus | |
Sample Time | 1 to 60 seconds (configurable) | |
Power | C 15–28 V · AC 100–240 V adapter · PoE++ 802.3bt | |
Operating Conditions | 10–30°C / 20–85% RH non-condensing | |
Storage Conditions | -10 to 50°C / up to 95% RH non-condensing | |
Warranty | 2-year limited warranty (Rigel standard) | |
Optional Accessories | USB-RS485 converter · Isokinetic probe (1 CFM) | |
